Description
Rail Information

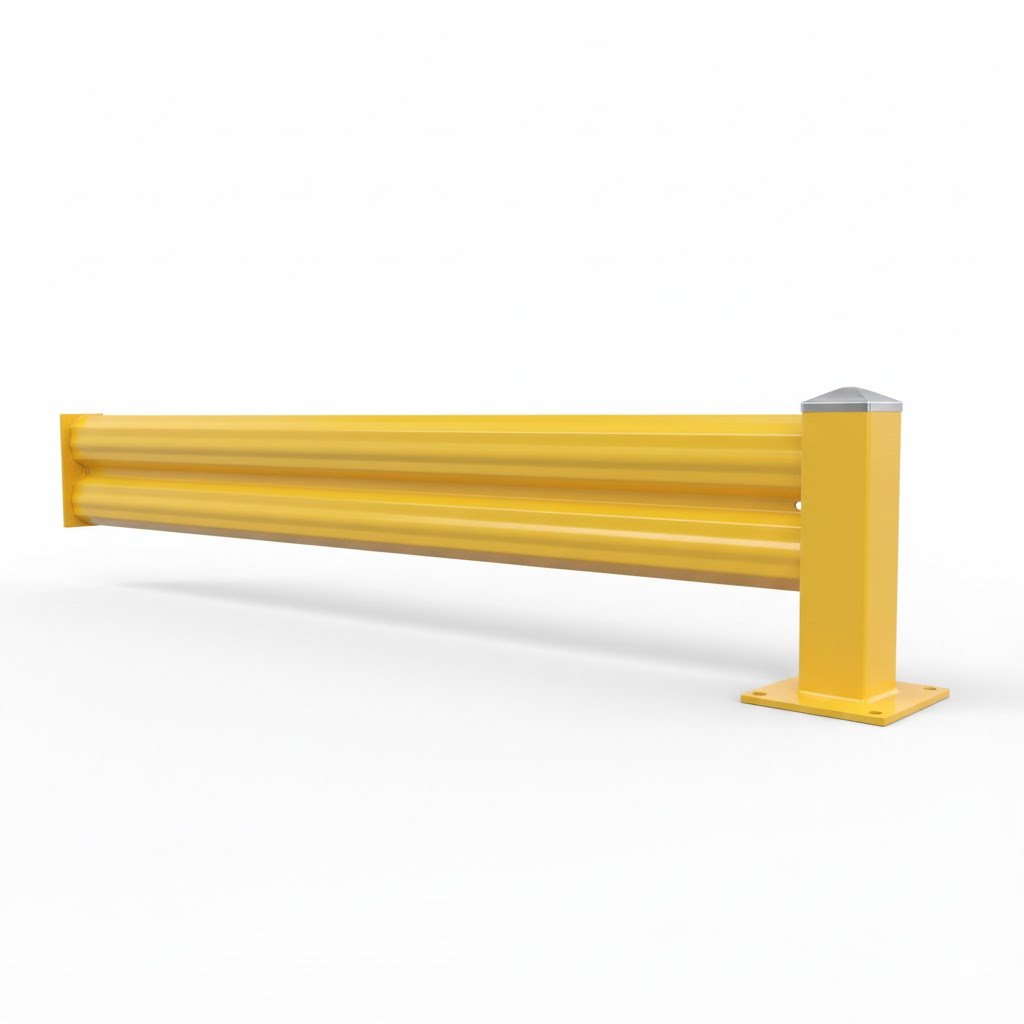

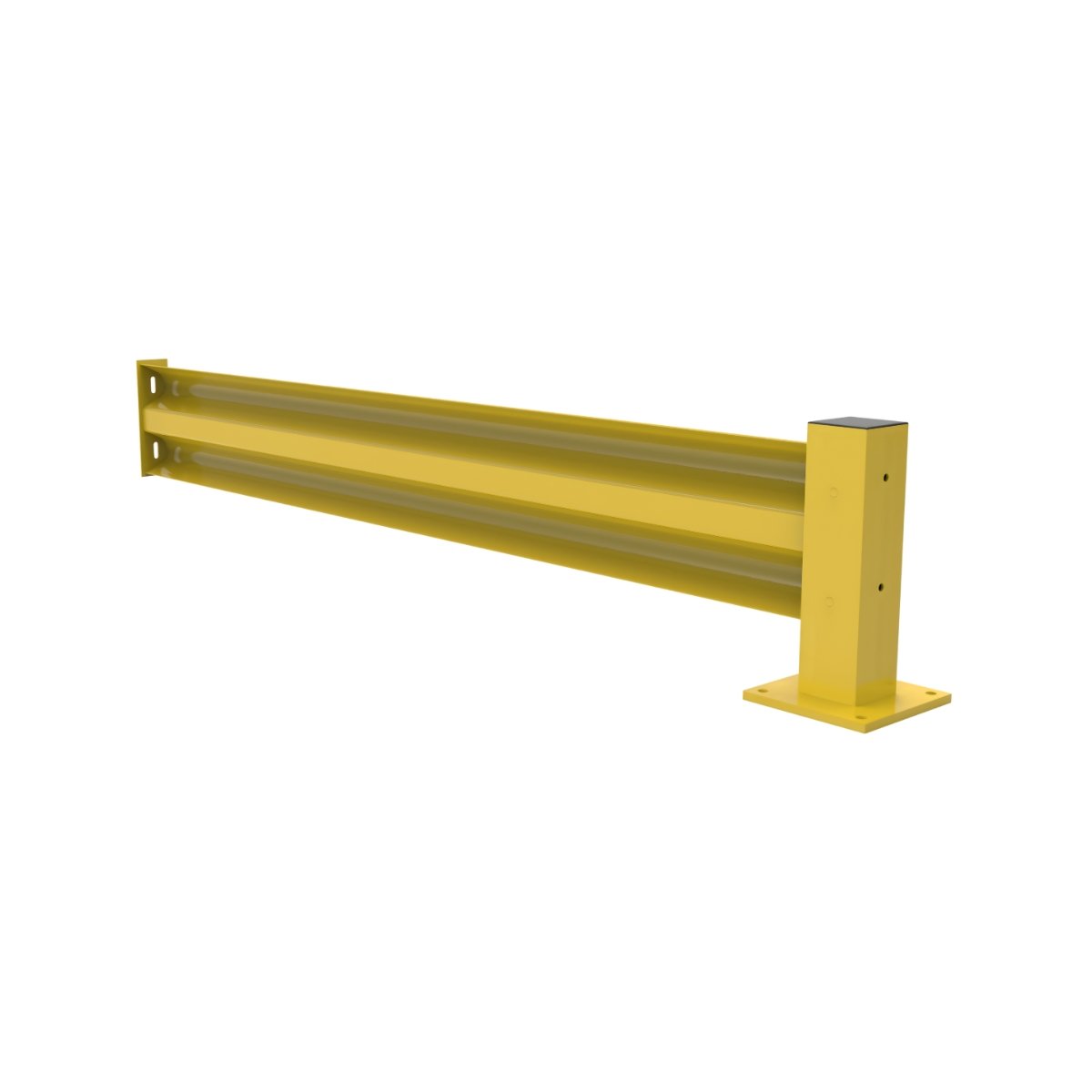

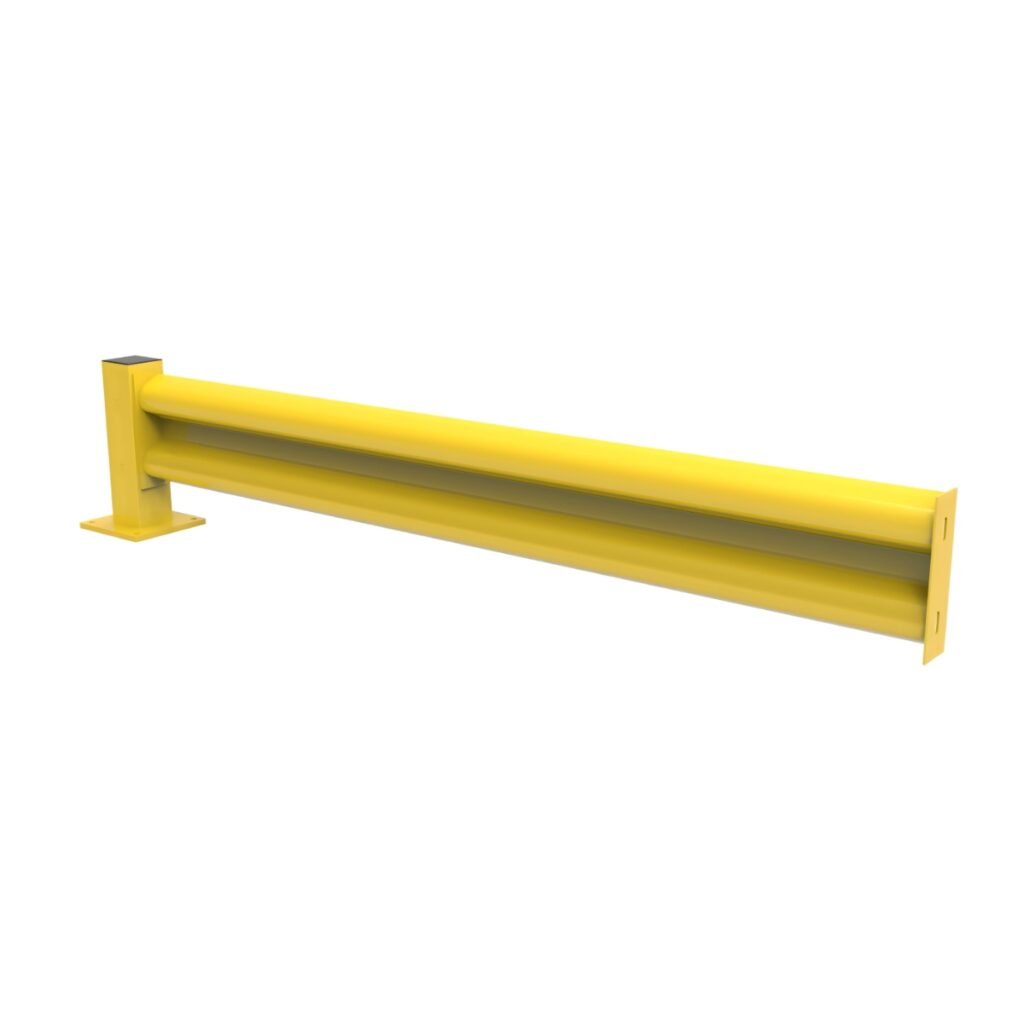

- The standard 12” high rail is welded to two plates on each side.
- Each plate has two pre-punched holes for connection.
- Secured to the post using 4 bolts per rail (12 mm (1/2’’) D x 30 mm (1 3/16’’)).
- Mounted between the inside faces of the posts.
- When properly installed, rated to withstand a 10,000 lb. impact at 4 mph
| Material | Height | Thickness | Finish | Bolts |
| ASTM A1011 Corrugated Steel | 12” | 13-GA (5/64”) | Powder-coated Safety Yellow | 4 bolts (12 mm x 30 mm) |
Rail Length & Weight
| Nominal Length | Exact Length | Weight |
| 2′-0″ | 1′-7″ | 14 lbs |
| 3′-0″ | 2′-7″ | 19 lbs |
| 4′-0″ | 3′-7″ | 23.5 lbs |
| 5′-0″ | 4′-7″ | 28.5 lbs |
| 6′-0″ | 5′-7″ | 33 lbs |
| 7′-0″ | 6′-7″ | 38 lbs |
| 8′-0″ | 7′-7″ | 42.5 lbs |
| 9′-0″ | 8′-7″ | 47.5 lbs |
| 10′-0″ | 9′-7″ | 52 lbs |
Note: Nominal length is measured center to center of posts.
Post Information:
- 18″ single high post
- Supports 1 panel rail
- Made from 4.75″ x 4.75″ x 1/4″ thick steel
- Posts come in Centred (Standard ), Offset or Corner configurations.
- Each post is welded to a 10” x 10” x 5/8” thick base plate
- Posts are anchored to concrete using (4x) ¾” x 4 ½” wedge anchors
- Powder-coated safety yellow
- When properly installed, rated to withstand a 10,000 lb. impact at 4 mph
- Weight 30.5lbs (includes hardware)

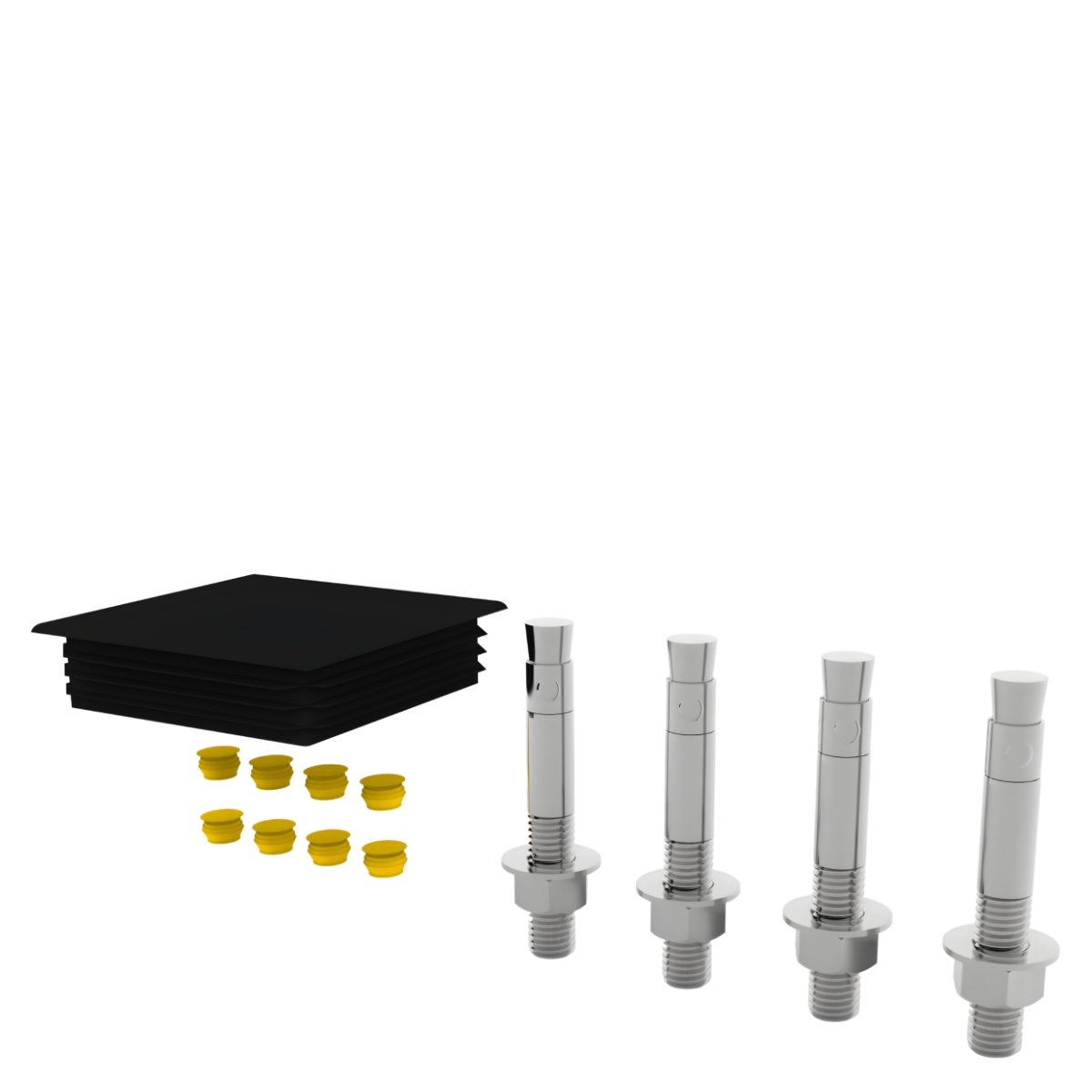

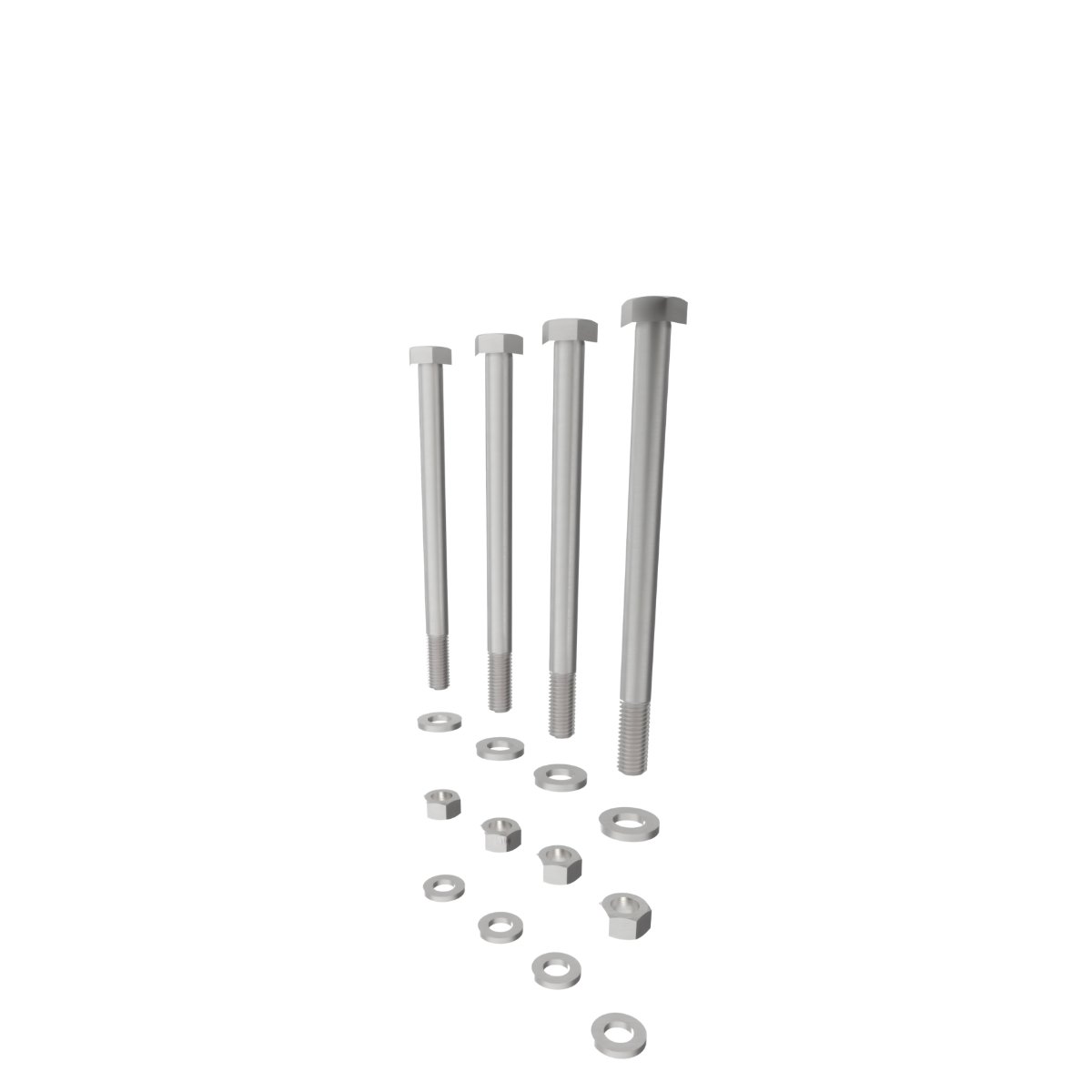

Hardware Kit Information (included):
- Post to concrete connection.
- (4x) 3/4″ x 4-1/4″ (19.1mm x 108mm) grade 8.8 wedge anchors
- Post to rail connection.
- (4x) M12 x 1.75-35mm hex head bolt. Grade 8.8
- (4x) M12 lock washer. Grade 8.8
- (4x) M12 Flat washer. Grade 8.8
- (4x) M12 hole plugs
- Post Cap
- (1x) Steel post cap
